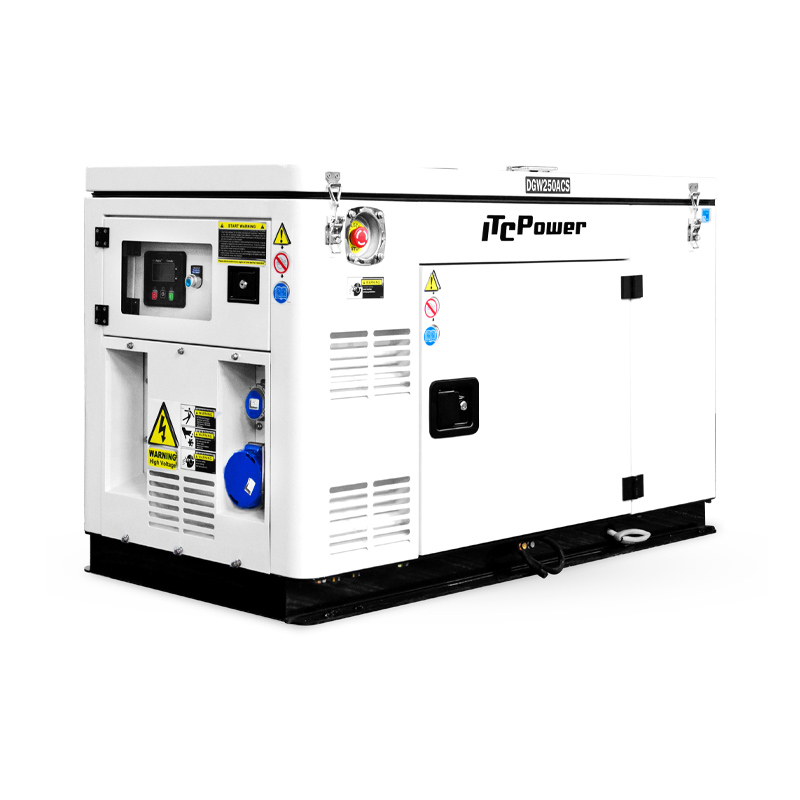

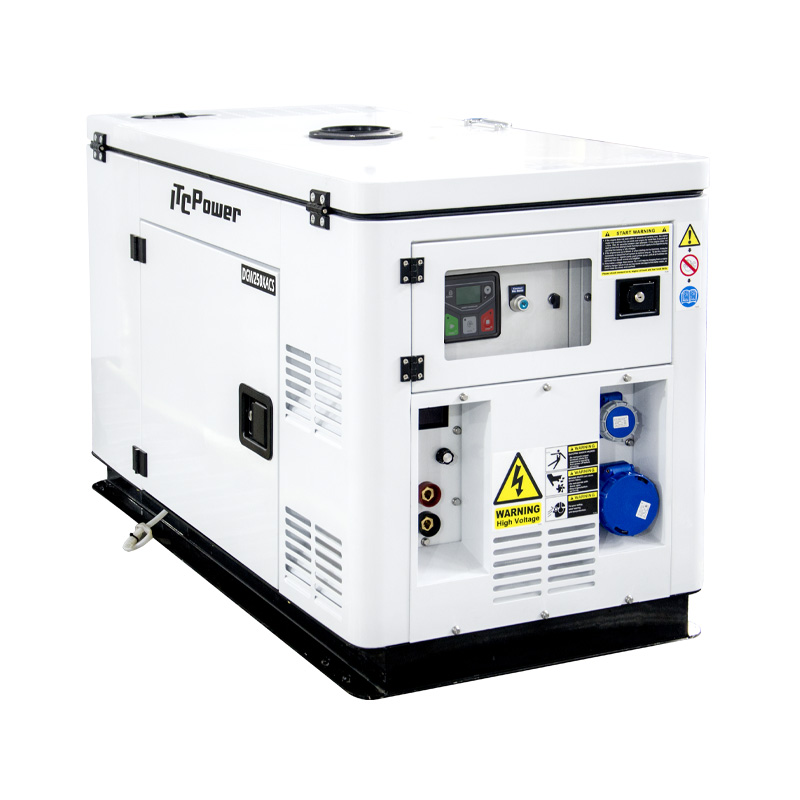

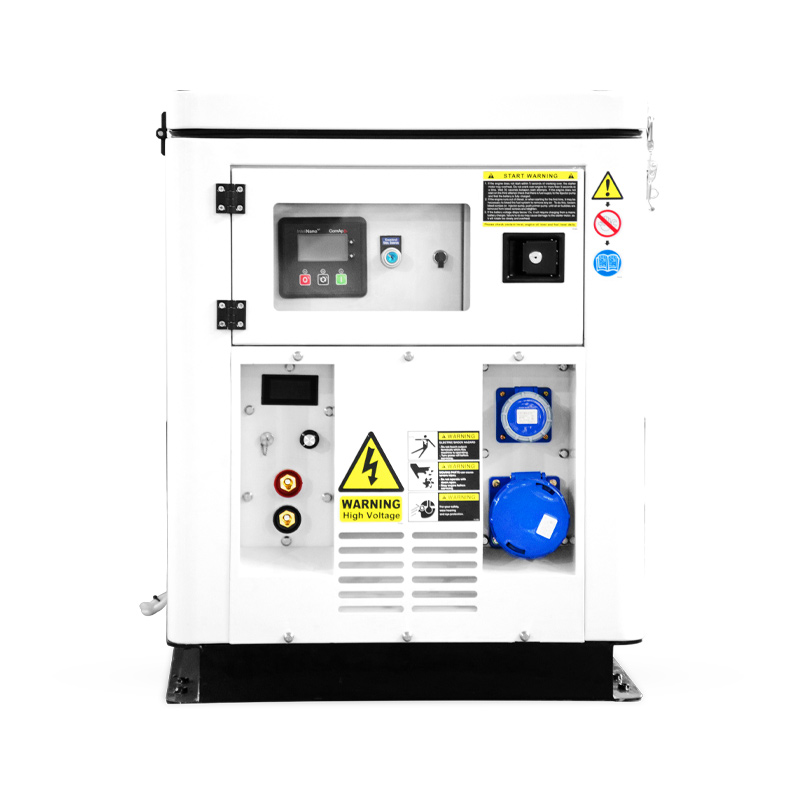

c) 9KW Silent Welder Generator

9KVA electric start silent type diesel welder generator with wheels and canopy. DGW250ACS is with a 18Hp/794cc V-Twin cylinder 4-Stroke water cooled diesel engine.

MOQ: 10 pcs
If you need to apply for a sample, you can click the button below.

Request Sample

Category:

Description

HE MOST POPULAR DIESEL WELDER GENERATOR

The DGW250ACS is stable and it’s easy to use and move, it’s with 4-stroke engine, water-cooled, V-Twin cylinder diesel engine. 9kw stable silent type diesel welder generator, the welding current is 0-250A.



RELIABLE POWER

The DGW250ACS diesel welder generator benefits from a nice quality AVR Brush copper alternator.



Digital Display

The DGW250ACS features electric start and a digital control panel (NANO), which can display total running time and welder generators’ history. It also has low oil pressure, high water temperature shutdown function, they ensure the engine is protected at all times.
The safty protection system also has the engine over and under speed shutdown function.

Specifications

Welder Model 　 DGW250ACS DGW250ACS
Frequency  Hz 50 60
Rated Power Kw 9 9
Rated voltage V 115/230 120/240
Rated current A 78.3/39.1 75/37.5
Welding voltage V 75-85 75-85
Welding current A 250 250
Welding working voltage V 35 35
Welding current adjustment range A 20-250 20-250
Welding rod diameter mm 2.5-6.0 2.5-6.0
Fuel tank L 30 30
Running time H 7.5 7.5
Sound level @ 7m    dBA 75 75
ENGINE   　 EV80 EV80
Displacement L 0.794 0.794
Rated power Kw 12 13.2
DIMENTIONS & WEIGHT 　 　 　
Net Weight Kg 318 318
Machine size mm 1360x650x980 1360x650x980

Optional

LED6-Digital-Display-2LED6-Digital-Display-2
 LED6 Digital Display
Showing voltage, current, frequency, power output, Battery voltage, times hours.
Maintainence-partMaintainence-part
 Maintainence part
Oil filter / Fuel filter / Air filter
