c) Trailer Light Tower

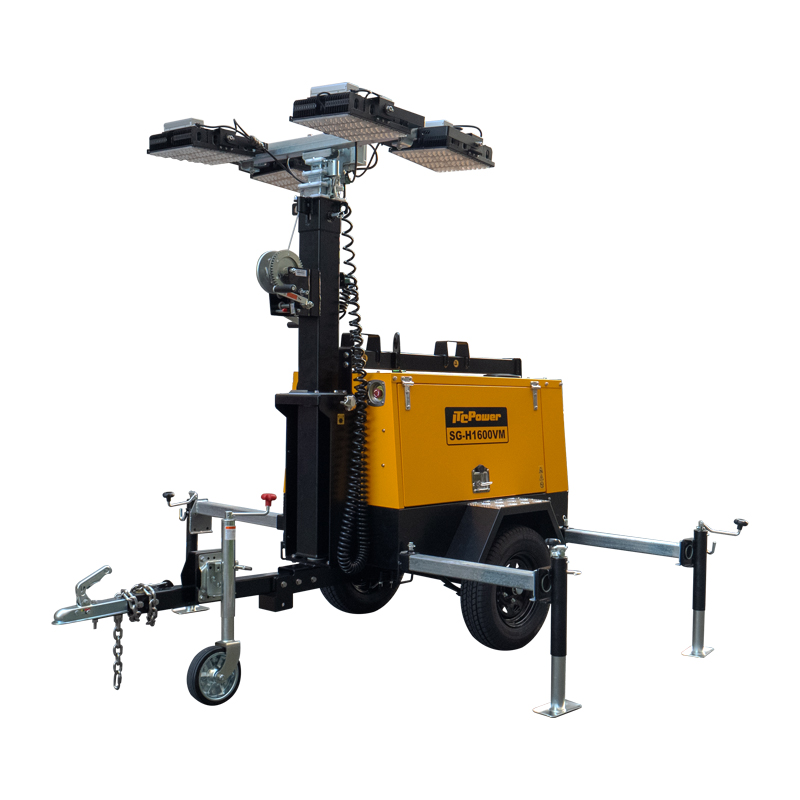

The SG-L1600D is a LED trailer light tower. They are suitable for a wide range of applications including large outdoor events, sports fields, construction and work sites, workshop, farming, logistics, rural and hard to reach areas and temporary public lighting.


MOQ:1 of light towers


Category:

Description

A WIDE RANGE OF APPLICATIONS

The SG-L1600D is a LED trailer light tower, the SG-L1600D is a LED trailer light tower. They are suitable for a wide range of applications including large outdoor events, sports fields, construction and work sites, workshop, farming, logistics, rural and hard to reach areas and temporary public lighting.



HIGH EFFICIENCY

The SG-L1600D trailer light tower boasts high efficiency, the highly efficient LED provides light coverage 4000 square meters.

EASE OF USE

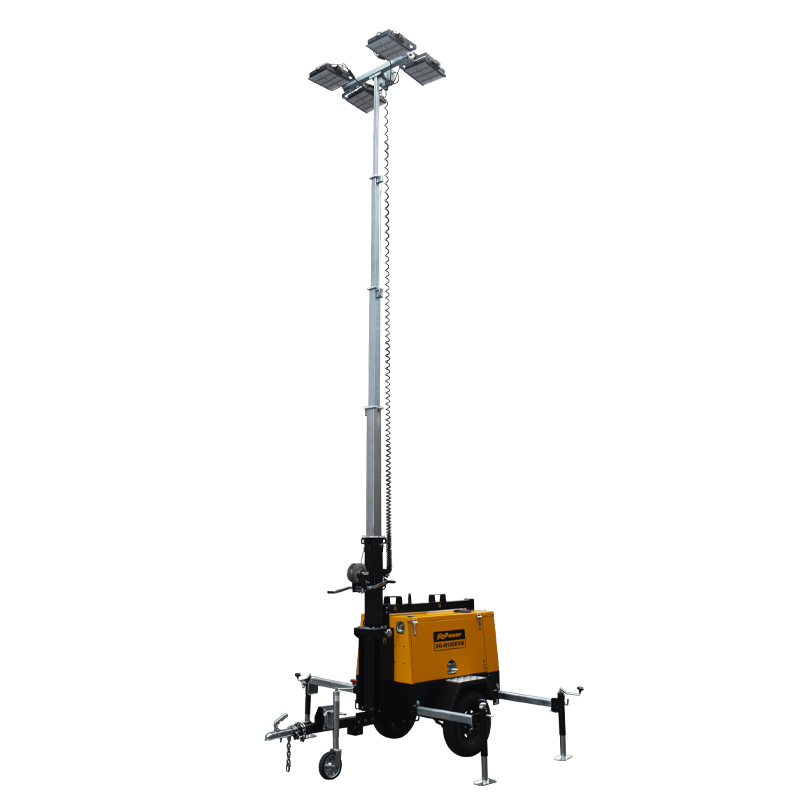

Easy to transport the SG-L1600D lighting tower features 4 pneumatic off road tyres. Towering 7/9 metres in height from the ground the SG-L1600D provide excellent illumination of large areas requiring temporary lighting.

Mains or generator powered the SG-L1600D can be used with existing 230 volt power supply equipment, due to low power consumption the generator is also available to run other electrical equipment.

These lighting towers can be supplied to run from either 110v or 230v – please specify the voltage required when ordering.

Specifications

Model SG-L1600D SG-H4000D
Light LED Metal Halide
Light Power (W) 4*400 4*1000
Lumen 160000 300000
Mast
Type Manual/Electric
Max Height (m) 7/9
Rotation 350°
Max.Wind Speed (km/h) 80
Trailer
Towing Speed (km/h) 25
Brake Parking brake
Tyres 155/70 R12
Towing Coupling Ball couping
Diemntions & Weight (Including Generator)
Package Size (mm) 1470*1100*2550
Min.Size (mm) 2280*1100*2230
Max.Size (mm) 2280*2260*7030/2280*1100*8800
Weight (kg) 680
Loading Capacity FCL 20’/40’HQ (units) 7/14
