c) 5.5KW Silent Diesel Generator

New design 6KVA 7KVA electric start silent diesel generator.DG8600SE-T is the latest design of single cylinder diesel generator. It’s popular generators available on the market today. 5KVA 6KVA 7KVA clean power output and low noise make it a reliable source of backup electrical power for your business or home and is portable enough for field work.


MOQ:10 pcs
If you need to apply for a sample, you can click the button below.

Request Sample

Description

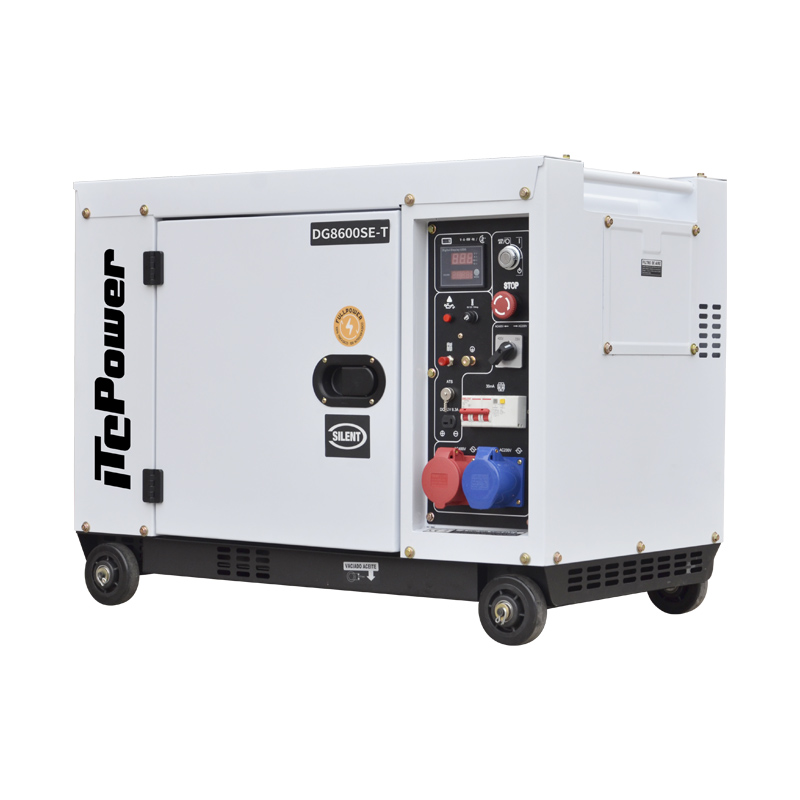

DG8600SE-T – 6kVA Silent Diesel Generator

The DG8600SE-T is a high-performance 6kVA silent diesel generator, designed with compact structure, stable power output, and low noise operation. As one of the most popular single-cylinder diesel generators on the market, it provides reliable electricity for residential and light commercial applications.

With flexible 5kVA–7kVA clean power output, the DG8600SE-T is an ideal backup power solution for homes, small businesses, construction sites, and workshop use.


The DG8600SE-T silent diesel generator is powered by a high-efficiency, low-emission 4-stroke 12HP diesel engine, delivering up to 6.3kW (7.9kVA) of clean and stable electricity.

A built-in voltage selector switch allows quick adjustment according to operational needs. Allowing you to power a wide range of electrical tools and equipment.

Additional performance features include:

  • Advanced AVR brushed copper alternator for precise voltage stability

  • 13-liter fuel tank, providing up to 7 hours of runtime at 75% load

  • Compatible with red diesel, ensuring more economical operation

The DG8600SE-T delivers consistent performance, fuel efficiency, and long-term reliability.


The DG8600SE-T features an easy-to-operate electric start system for fast and reliable ignition.

The integrated LED6 digital control panel displays:

  • Voltage

  • Frequency

  • Total running time

For automatic standby applications, the generator is compatible with optional:

  • Automatic Transfer Switch (ATS)

  • Remote control box

Built-in safety protection systems include:

  • Low oil alarm with automatic shutdown

  • Overload protection

  • Overcurrent protection

These features ensure safe operation and extended engine life.


As part of the ITCPOWER Silent Series, the DG8600SE-T is equipped with a sound-attenuated canopy, significantly reducing operational noise and making it suitable for residential and low-noise environments.

The canopy includes large hinged access panels for convenient maintenance and inspection. The generator is mounted on durable wheels for easy transportation and positioning.

Specifications

GENERATOR DG8600SE DG8600SE-3 DG8600SE-T
Frecuency Hz 50 50 50
Rated Power 5.5 kw 6.9 kva 5.0 kw/ 6.9 kva
Max. Power 6.3 kw 7.9 kva 5.8 kw/ 7.9 kva
Voltage V 230 230 / 400 230 / 400
Current A 27.4 11.4 25.2 / 11.4
Plugs 16A & 32A 16A & 16A 16A & 32A
Display LED3 / LED6 LED3 / LED6 LED3 / LED6
Fuel tank capacity L 13 13 13
Running time @75% load H 7 7 7
Sound level @ 7m dBA 72 72 72
DC output V/A 12 / 8.3 12 / 8.3 12 / 8.3
Battery V/Ah 12 / 30 12 / 30 12 / 30
ENGINE D500E D500E D500E
Engine type Diesel Diesel Diesel
Power hp 12 12 12
Start Electric Electric Electric
Displacement CC 498 498 498
Oil Capacity L 1.75 1.75 1.75
ALTERNATOR AL6 AL6-3 AL6-T
Power Kw 6 6 6
Power Factor 1 0.8 1 / 0.8
Voltage Regulation Brush / AVR Brush / AVR Brush / AVR
DIMENTIONS & WEIGHT
Net Weight Kg 155 155 162
Gross Weight Kg 163 163 170
Machine size mm 920×520×720 920×520×720 920×520×720
Diemntions Package mm 960×560×760 960×560×760 960×560×760
Loading Capacity FCL20’/40’HQ 48/144 48/144 48/144

Optional

ATS Box
Portable Cabinet, 220-240V, 50A, 1-phase. 15M cable.
Remote controller
300 meters distance remote contorller, include signal reciver x1, handle x1.
Cooling fan
230V cooling fan
25L big tank
For DG8600SE/SE-3.
Maintainence part
Oil filter / Fuel filter / Air filter

Downloads

Silent Diesel Generator Catalog
