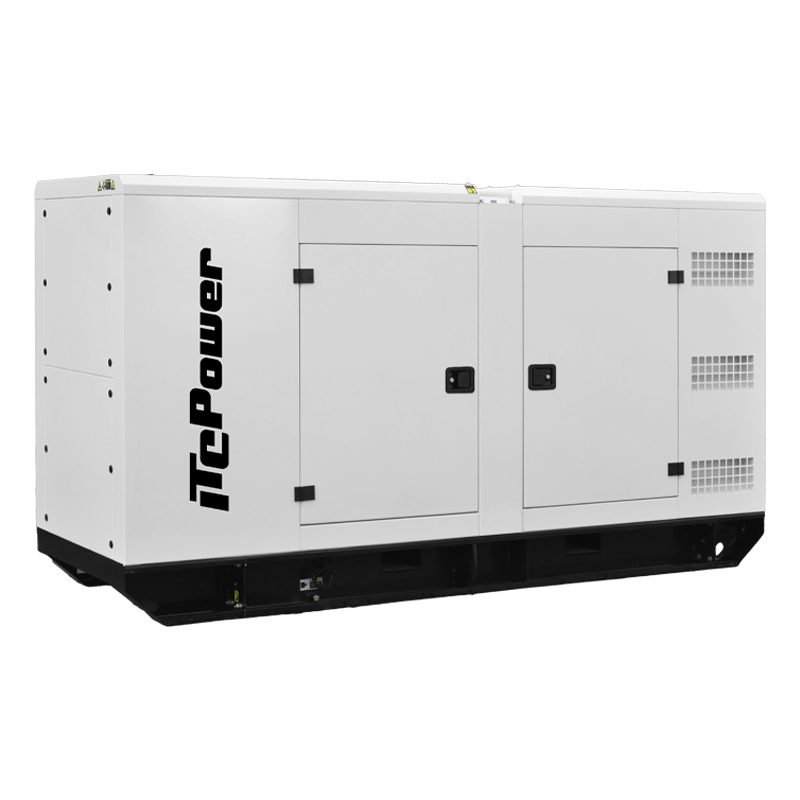

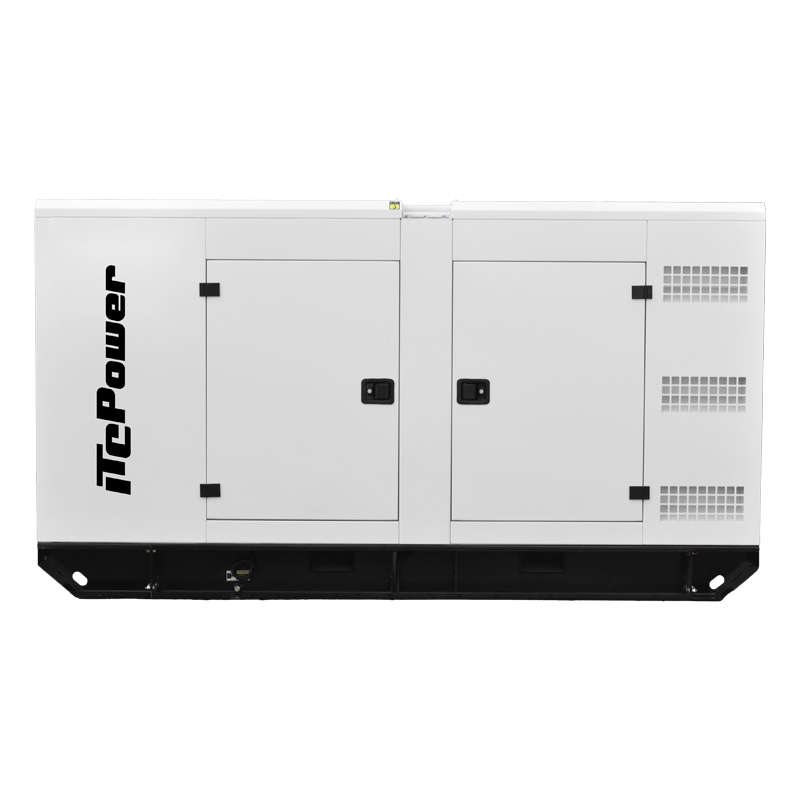

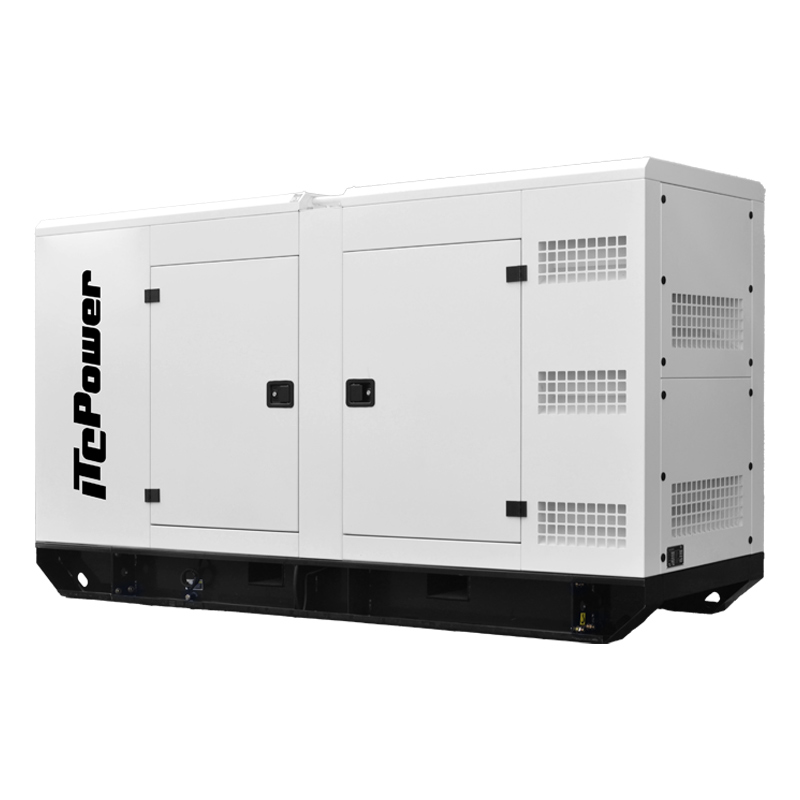

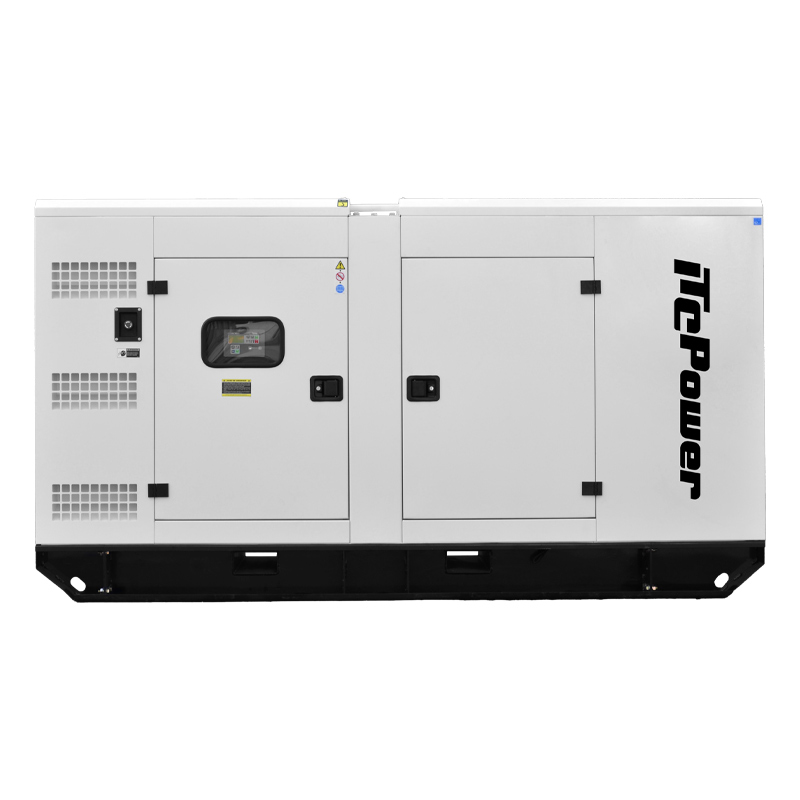

f) Industrial Diesel Generator-DEUTZ

22kW/22kVA maximum output and single-phase supply, a longer lifespan and better economy.
Stationary genset suitable for both standby or prime power supply.
Weather-proof silenced canopy which helps to decrease noise levels.
ATS-compatible, and can be easily installed with optional transfer switch.
Large fuel tank for extended running times.

MOQ:1 of industrial diesel generators

Category:

50HZ

Prime Power (kVA) Standby Power (KVA) Rate Voltage (V) Rate Current (A) Catalogue
DD20KSE 18.8 20.6 400/230 27.1 Download
DD33KSE 29.4 32.3 400/230 42.4 Download
DD48KSE 42.5 46.8 400/230 61.3 Download
DD50KSE 46.3 50.9 400/230 66.8 Download
DD65KSE 59 65 400/230 85 Download
DD85KSE 77.5 85.3 400/230 111.9 More Details
DD100KSE 90 99 400/230 130 Download
DD110KSE 103.4 113.7 400/230 149 Download
DD125KSE 112.5 123.8 400/230 162.4 Download
DD145KSE 133 145.8 400/230 192 Download
DD180KSE 168 184.3 400/230 242.5 Download
DD200KSE 178.3 196 400/230 257.4 Download
DD210KSE 191.3 210.4 400/230 276 Download
DD230KSE 210 231 400/230 303 Download
DD250KSE 225 250 400/230 324.8 Download
DD280KSE 250 275 400/230 361 Download
DD310KSE 275 313 400/230 396.9 Download
DD350KSE 313 350 400/230 451.8 Download
DD380KSE 350 375 400/230 505.2 Download
DD410KSE 375 413 400/230 541.3 Download
DD480KSE 438 475 400/230 632.2 Download
DD500KSE 450 500 400/230 650 Download
DD530KSE 475 525 400/230 685.6 Download
DD550KSE 500 550 400/230 722 Download
DD570KSE 513 563 400/230 740.5 Download
DD590KSE 538 588 400/230 776.6 Download
DD600KSE 563 600 400/230 812.6 Download
DD750KSE 688 756 400/230 993 Download
DD830KSE 750 825 400/230 1083 Download

60HZ

Prime Power (kVA) Standby Power (KVA) Rate Voltage (V) Rate Current (A) Catalogue
DD28KSE 25 27.5 440/254 32.8 Download
DD38KSE 35 38.5 440/254 45.9 Download
DD53KSE 48 52.8 440/254 63 Download
DD66KSE 60 66 440/254 78.7 Download
DD75KSE 70 77 440/254 91.9 Download
DD90KSE 82 90.2 440/254 107.6 Download
DD110KSE 98 108 440/254 128.6 Download
DD125KSE 112 123 440/254 147 Download
DD140KSE 125 138 440/254 164 Download
DD150KSE 138 151 440/254 181 Download
DD185KSE 168 185 440/254 220 Download
DD220KSE 200 220 440/254 262.4 Download
DD230KSE 210 231 440/254 275.6 Download
DD245KSE 220 242 440/254 288.7 Download
DD275KSE 250 275 440/254 328 Download
DD305KSE 275 303 440/254 361 Download
DD345KSE 313 344 440/254 410.7 Download
DD385KSE 350 385 440/254 459.3 Download
DD500KSE 450 495 440/254 590.5 Download
DD530KSE 475 523 440/254 623.3 Download
DD550KSE 500 550 440/254 656.1 Download
DD620KSE 562.5 618.8 440/254 738.1 Download
DD760KSE 687.5 756.3 440/254 902.1 Download
DD825KSE 750 825 440/254 984 Download

Optional

External Fuel Tank & Large Base Fuel tank
Enlargen the generator keep-running time with more different litre fuel tank options.
Water Heater
In order to keep the performance and well work under the cold temperature which is under 0 ℃.
Parallel System for Generato
ATS Box
An ATS will sense the power cut and automatically start the generator even if you’re not around. Once the power has been restored, the ATS will again, automatically switch you back to mains power.
Maintainence part
Oil filter / Fuel filter / Air filter
AMF9
