m) 5.5KW Diesel Generator
Open-Frame-Diesel-Generator

m) 5.5KW Diesel Generator

6KVA 7KW latest design electric start open type diesel generator, which can full power output in single phase and three phase.

MOQ: 10 pcs
If you need to apply for a sample, you can click the button below.

Request Sample

Category:

Description

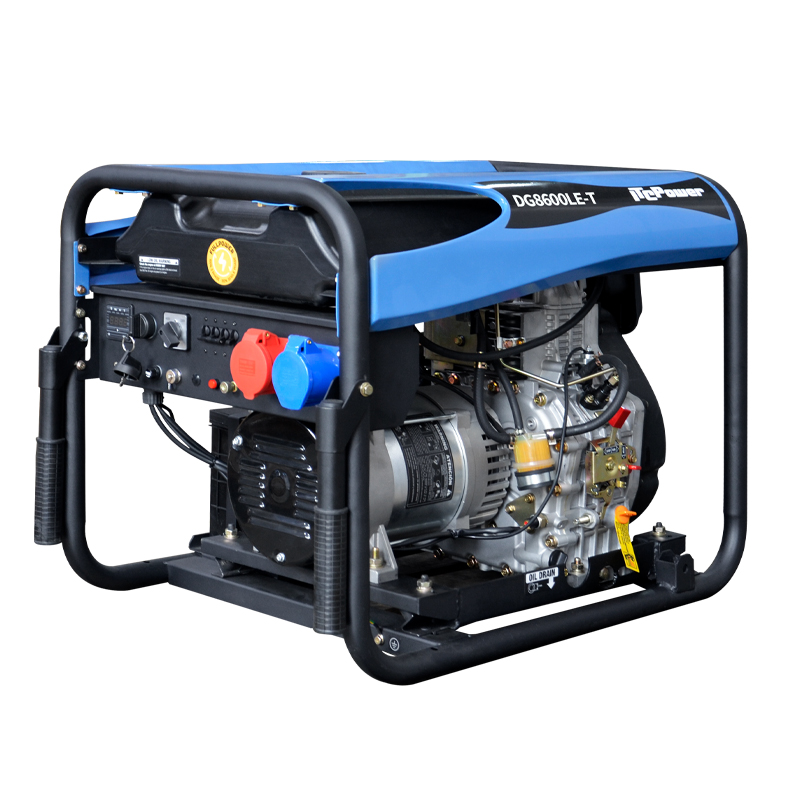

DG8600LE – 7kVA Open Frame Diesel Generator

The DG8600LE is a newly designed single-cylinder open frame diesel generator, combining a modern appearance with reliable engine performance.

Featuring a refreshed and stylish exterior design, the DG8600LE not only delivers dependable power but also enhances market competitiveness, making it an excellent choice for distributors and dealers.

With 7kVA clean power output, this generator is suitable for construction sites, commercial applications, and home or garage backup use.

The DG8600LE is powered by a 4-stroke D500 10HP low-emission diesel engine, delivering up to 5kW (6.9kVA) of stable and clean electricity for residential or commercial applications.

A built-in voltage selector switch allows easy adjustment according to operational needs. Allowing connection to a wide range of tools and electrical equipment.

Additional performance features include:

  • High-quality AVR brushed copper alternator for stable voltage regulation

  • 15-liter fuel tank, providing up to 8 hours of runtime at 75% load

  • Economical diesel operation for reduced fuel costs

The DG8600LE is designed to provide consistent performance and long service life.

The DG8600LE features a reliable electric start system, ensuring convenient ignition.

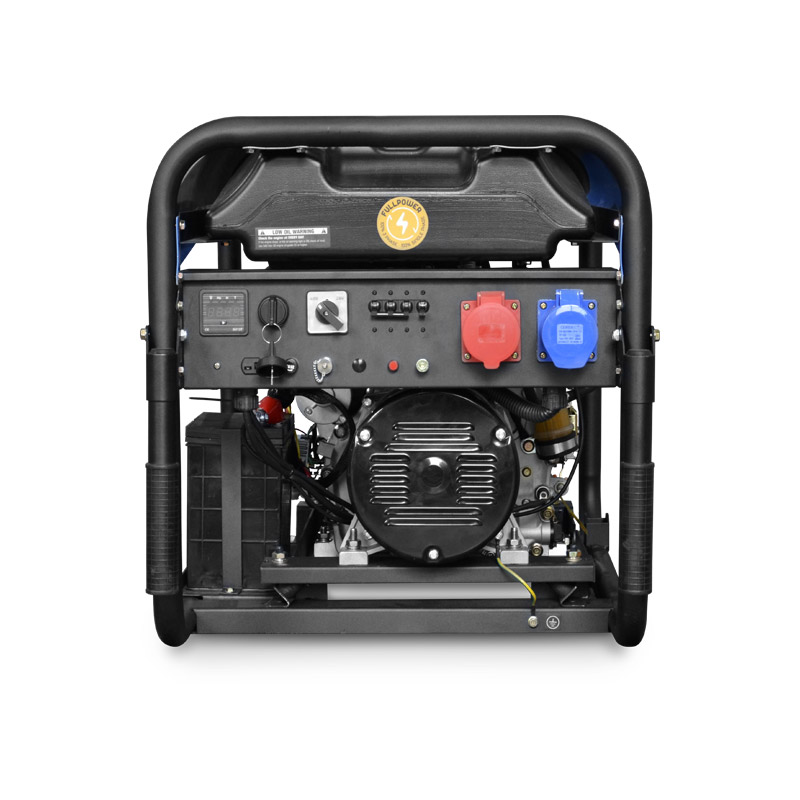

Its integrated digital control panel clearly displays:

  • Voltage

  • Frequency

  • Total running hours

Built-in safety systems include:

  • Low oil alarm with automatic shutdown

  • Overload protection

  • Overcurrent protection

These protection functions ensure safe operation and protect the engine from potential damage.

Specifications

GENERATOR 　 DG8600LE DG8600LE-3 DG8600LE-T
Frecuency Hz 50 50 50
Rated Power 　 5.5 kw 6.9 kva 5.0 kw/ 6.9kva
Max. Power 　 6.3 kw 7.9 kva 5.8 kw/ 7.9kva
Voltage V 230 230 / 400 230 / 400
Current A 27.4 11.4 25.2 / 11.4
Plugs 　 16A & 32A 2*16A 1*32A / 1*16A
Display 　 LED3 / LED6 LED3 / LED6 LED3 / LED6
Fuel tank capacity L 15 15 15
Running time @75% load H 8 8 8
Sound level @ 7m dBA 79 79 79
DC output V/A 12/8.3 12/8.3 12/8.3
Battery V/Ah 12 / 30 12 / 30 12 / 30
ENGINE 　 D500E D500E D500E
Engine type 　 Diesel Diesel Diesel
Power hp 12 12 12
Start 　 Manual / Electric Manual / Electric Manual / Electric
Displacement CC 498 498 498
Oil Capacity L 1.75 1.75 1.75
ALTERNATOR 　 AL6 AL6-3 AL6-T
Power Kw 6 6 6
Power Factor 　 1 0.8 1 / 0.8
Voltage Regulation 　 Brush / AVR Brush / AVR Brush / AVR
DIMENSIONS & WEIGHT 　 　 　 　
Net Weight Kg 109 109 109
Gross Weight Kg 111 111 111
machine size mm 810×550×600 810×550×600 810×550×600
Dimensions Package mm 830×570×630 830×570×630 830×570×630
Loading Capacity FCL20’/40’HQ 　 84/228 84/228 84/228

Optional

ATS Box
Portable Cabinet, 220-240V, 50A, 1-phase. 15M cable.
Remote-controllerRemote-controller
 Remote controller
300 meters distance remote contorller, include signal reciver x1, handle x1.
Push-wheels-kit-T10Push-wheels-kit-T10
 Push wheels kit T10
Push wheel kit: 10 inch solid rubber tire ×2, Push handle ×2, Rubber mat ×2 (Packing into the generator box).
Cooling-fanCooling-fan
 Cooling fan
230V cooling fan
25L big tank25L big tank
 25L big tank
For DG6000SE/SE-3, DG7500SE/SE-3,  DG8500SE/SE-3.
Maintainence-partMaintainence-part
 Maintainence part
Oil filter / Fuel filter / Air filter

Downloads

Open Type Diesel Generator Catalog
