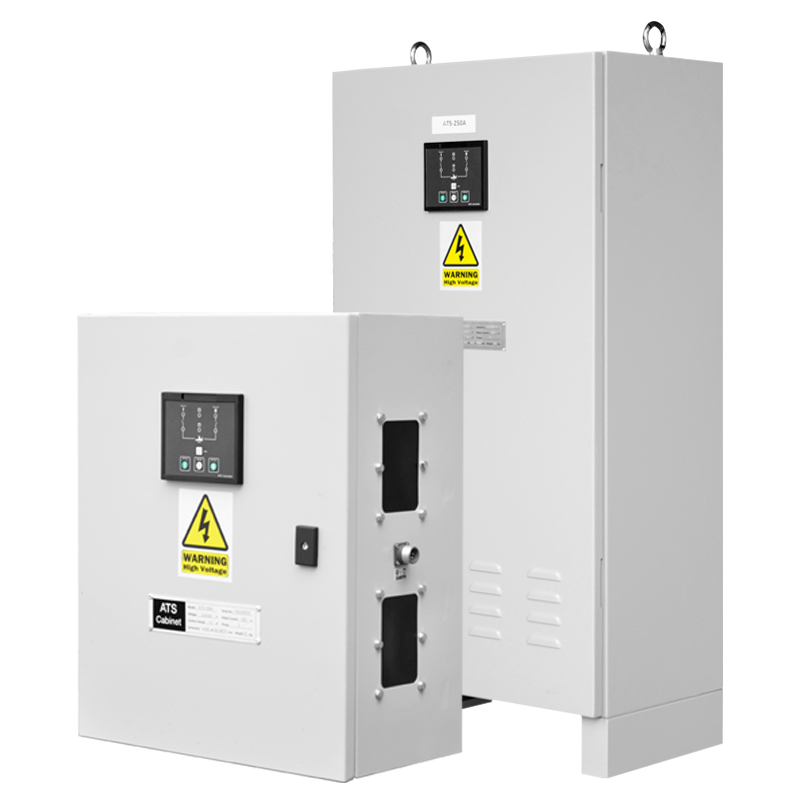

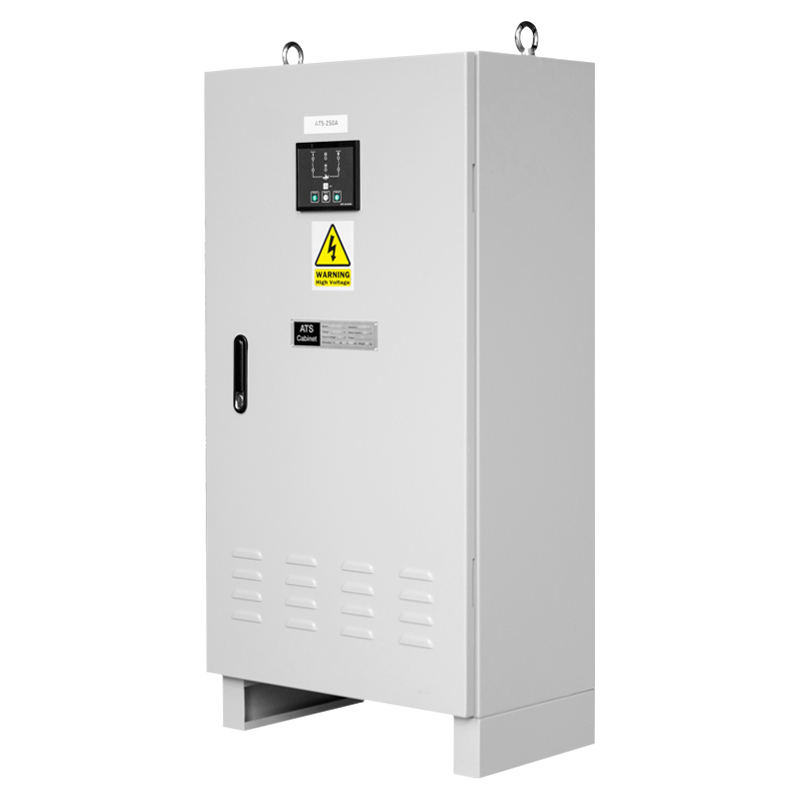

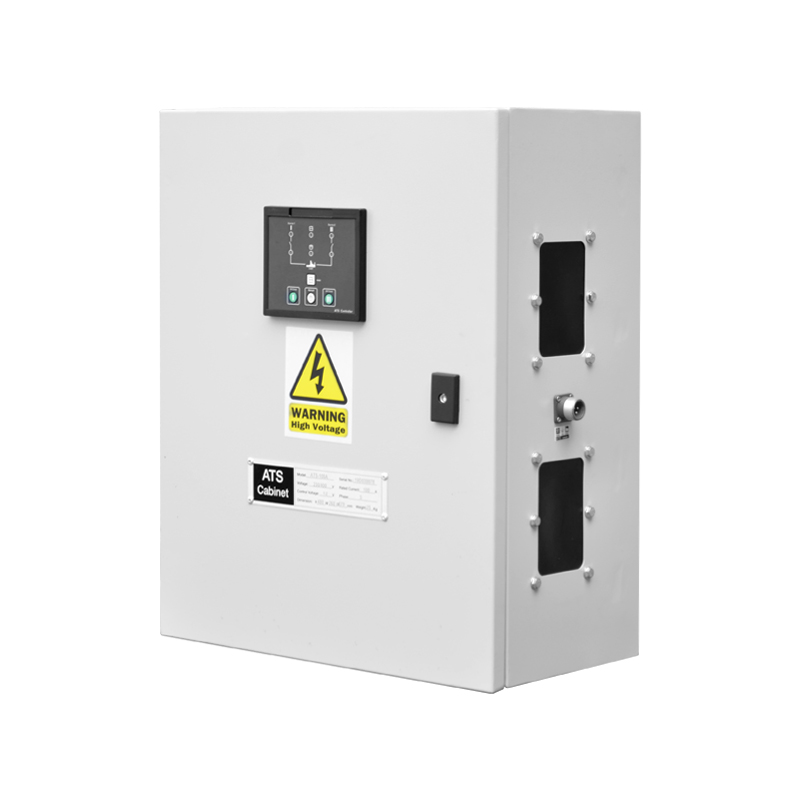

i) Automatic Transfer Box

An ATS will sense the power cut and automatically start the generator even if you’re not around. Once the power has been restored, the ATS will again, automatically switch you back to mains power.

Brand Name: ITCPOWER
Email: sale@itcpowerworld.com
Whatsapp: +86-15051969118

Category:

Specifications

Three Phase – Box, ATS switch, Control module, 15m cable.
No. ATS Model Rate Current (A) Dimension (mm) Weight (Kg)
1 ATS1-100A 100A 400×200×550 21
2 ATS2-160A 160A 600×360×1200 69
3 ATS2-250A 250A 600×360×1200 72
4 ATS3-400A 400A 750×480×1500 108
5 ATS3-630A 630A 750×480×1500 108
6 ATS4-1000A 1000A 850×560×1900 195
8 ATS4-1250A 1250A 850×560×1900 195
9 ATS4-1600A 1600A 850×560×1900 205
10 ATS5-2000A 2000A 1000×850×2100 354
11 ATS5-2500A 2500A 1000×850×2100 356
12 ATS5-3200A 3200A 1000×850×2100 360
　
Single Phase – Box, ATS switch, Control module, 15m cable.
No. ATS Model Rate Current (A) Dimension (mm) Weight (Kg)
1 ATS1-100Am 100A 400×200×550 20
2 ATS2-160Am 160A 600×360×1200 68
3 ATS2-250Am 250A 600×360×1200 71
4 ATS3-400Am 400A 750×480×1500 107
5 ATS3-630Am 630A 750×480×1500 107
