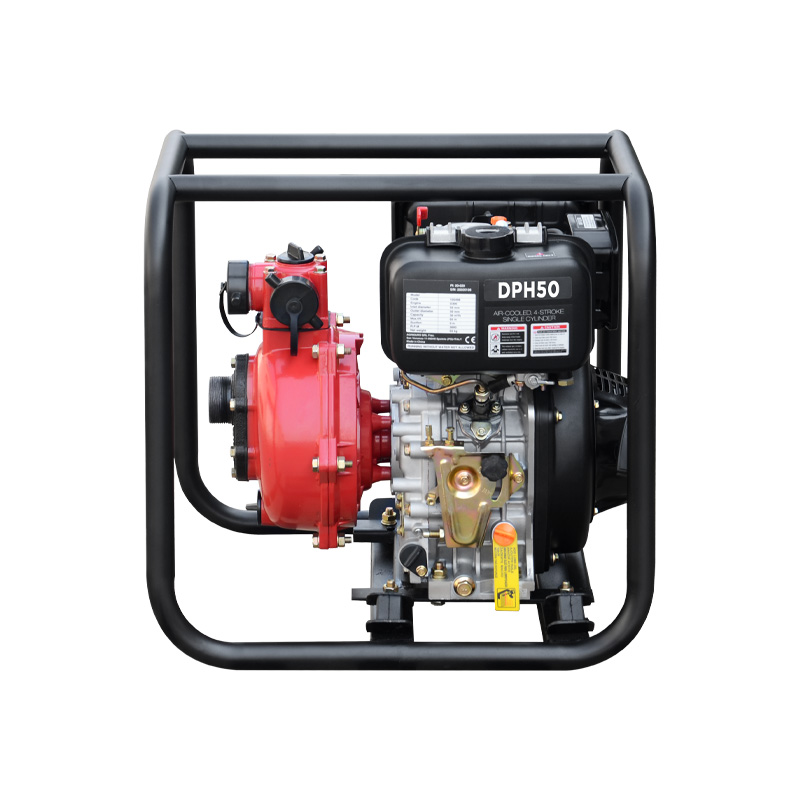

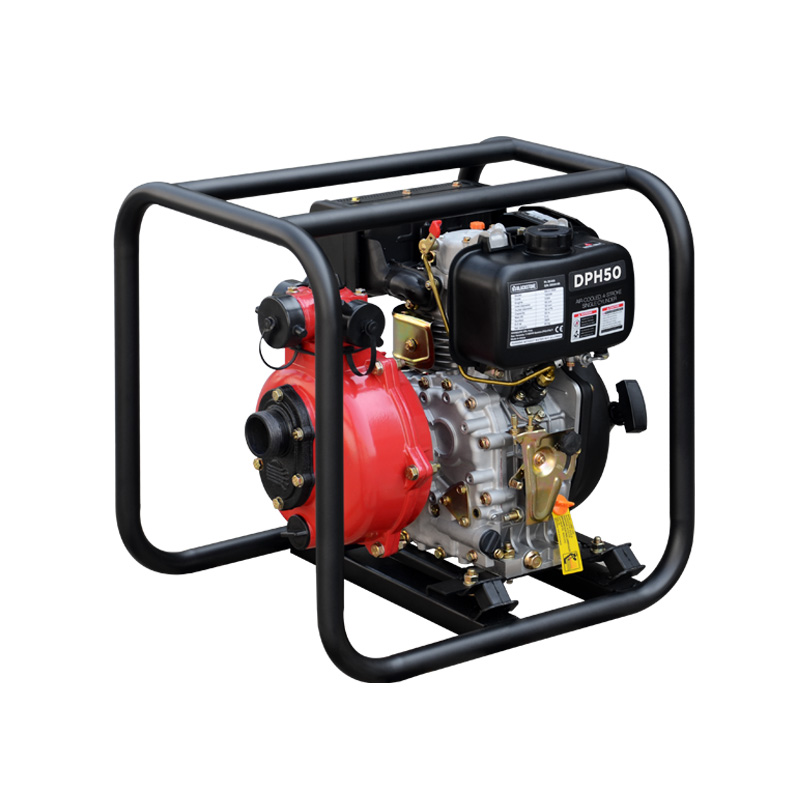

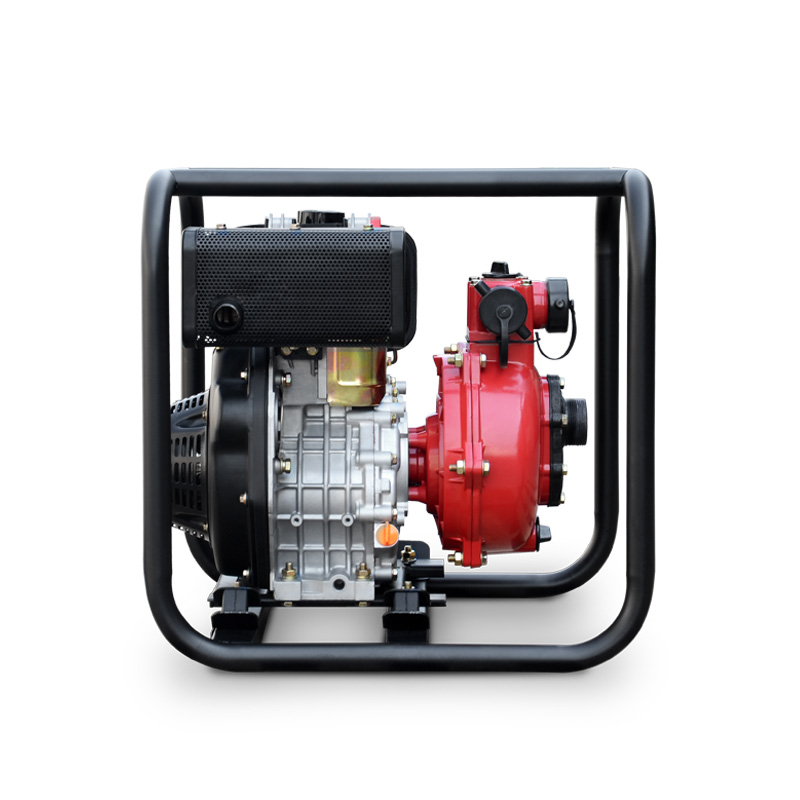

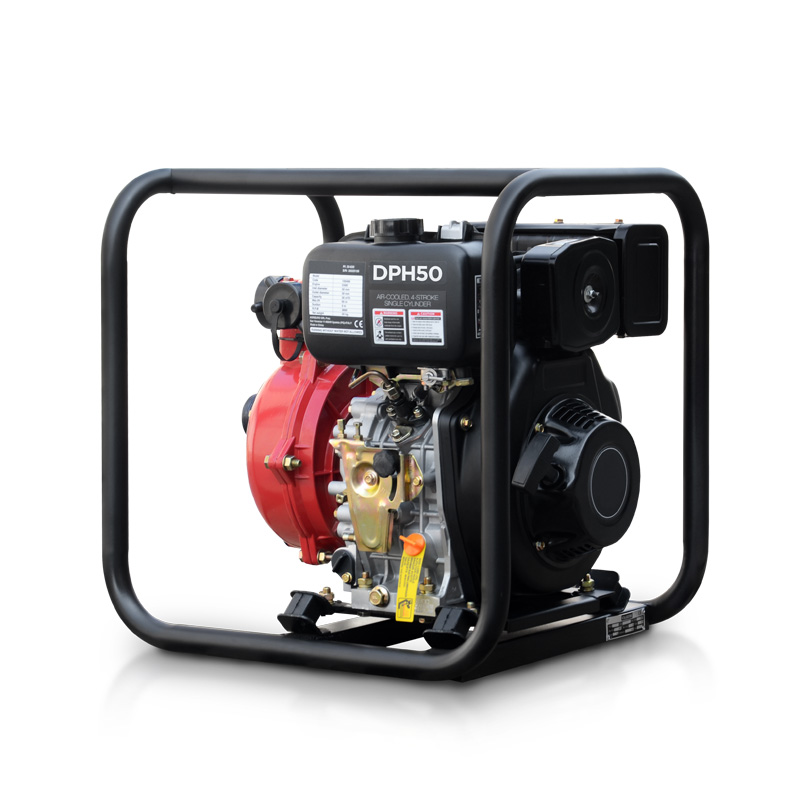

High Pressure Pump DPH50_2″

2 INCH CALIBER DIESEL HIGH PRESSURE PUMP- 6HP- ELECTRIC/MANUAL START

ITCPower series 2 inch diesel high pressure pumps are famous for their stability, durability and safety. They are ideal for farmland irrigation and general water transfer applications.

MOQ: 10 pcs
If you need to apply for a sample, you can click the button below.

Request Sample

Category:

Description

THE HOT SELLING DIESEL CAST IRON PUMP

DPH50E is a powerful diesel high pressure pump, the most perfect is the electric start function, easy to start. Of course, the DPH50 is also very popular as a manual start, they are only different in the starting method.
The DPH50E is powered by a rugged and reliable D300 296cc diesel engine with a maximum flow of 30m³/h and a maximum head of 65m.
The DPH50E has a 2 inch (50 mm) water inlet and outlet, capable of handling solids up to 7 mm in diameter, which is an impressive size for a high pressure pump like this.



EASY OF USE

ITCPower’s diesel high pressure pump is very suitable for use in homes or professional, difficult environments. Of course, this also includes prevention or damage caused by small floods.



CONCLUDED BENEFITS

Using diesel drive, the product can be used directly without the use of power supply, minimizing the risk of electric shock.

The high pressure pump is very light in weight and is a very light machine. The sturdy open frame design not only protects the water pump, but also doubles as a handle for easy transportation.

Low fuel consumption and low oil consumption.

The wide range of accessories.



WHATS IN THE BOX

ITCPower diesel high pressure water pump, User Manual, Tools.

Specifications

PUMP (ITC) DPH50(E) DPH50-2E DPH50EA
Diameter (inlet/outlet) (mm) 50 (2″) 50 (2″) 50 (2″)
Max. Flow (m3/h) 30 22 30
Max. Head (m) 65 80 100
Max. Solid diameter (mm) 9 9 9
Suction head (m)  7 7 7
Fuel tank capacity (L) 3.5 / 10 5.5 / 10 5.5 / 10
Fuel consumption @75% load (H) 3.5 / 10 4 / 7 3 / 5.5
ENGINE   D300 D400 D500
Engine type Diesel Diesel Diesel
Power (hp) 6(4.4kw) 9.5 (7kw) 12 (8.8kw)
Start  Manual/Electric Electric Electric
Battery (Ah) 22 30 30
Displacement(cc ) 296 418 498
Oil Capacity(L) 1.1 1.65 1.75
DIMENSIONS & WEIGHT  (standard) 　 　 　
Net Weight (Kg) 53 88 92
Gross Weight (kg) 57 92 96
machine size(mm) 575×470×570  660×535×650  660×535×650
Dimensions Package(mm) 595×490×600 680×555×685 680×555×685
Loading Capacity FCL20’/40’HQ 129/364 96/204 96/204
DIMENSIONS & WEIGHT  (Big fuel tank) 　 　 　
Net Weight (Kg) 60 93 97
Gross Weight (kg) 64 97 101
machine size(mm) 560×460×665 655×480×715 655×480×715
Dimensions Package(mm) 580×480×695 675×500×745 675×500×745
Loading Capacity FCL20’/40’HQ 135/276 108/225 108/225



Optional

optional-Fuel-tankoptional-Fuel-tank
 Fuel tank
Large fuel tank with capacity 10L.
Push-wheels-kit-T10Push-wheels-kit-T10
 Push wheel kit T10
10 inch solid rubber tire ×2, Push handle ×2, Axis ×1.
Push-wheel-kit-T10Push-wheel-kit-T10
 Roller Shaft
Shelf dedicated to winding/storing inlet and outlet pipes.
optional pipeoptional pipe
 Inlet pipe & outlet pipe
optional sealoptional seal
 Mechanical seal
Maintainence-partMaintainence-part
 Maintainence part
Oil filter / Fuel filter / Air filter

Downloads

Diesel Water Pump Catalog
